Motor for Vertical Blinds, Left Side, 24VDC
Vistas Adicionales
Control Solutions
6-710-VB-00310
6-700-AT-AC227
6-710-CH-00000| Torque | 2 Nm |
| Speed | 8cm/s | 45 rpm |
| Sound Level | 50 dB |
| Limits | Mechanical |
| Index Protection | IP 20 |
| Power | 12 W |
| Current | 500 mA |
| Voltage Supply | 24 V DC |
| Input Voltage | 100 | 240 V AC |
| Maximum Rail Length | 217” | 5.5 m |
| Weight Capacity* | 18 lb | 8 kg |
| Max. # of Carriers | 60 Scissor Carriers |
| Working Temperature | 14 ~ 140 ºF | -10 ~ 60 ºC |
*The maximum weight capacity is calculated under optimal circumstances. Actual results may vary. Specifications are subject to change without notice.
 |

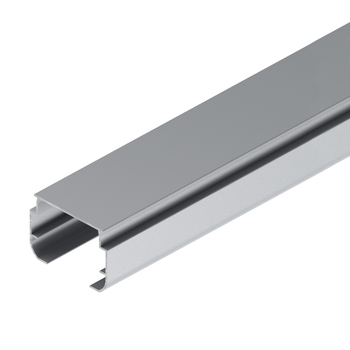

| MATRIX Aluminum Ellipse Track For Vertical Blinds |
| 0-040-AL-002XX |
| Lengths: 16' & 19' |
| Picture | Code | Description | Quantity | Unit |
|---|---|---|---|---|
|
6-710-VB-003X0 |
Adapter Set for Vertical Blinds Motor - White |
1 | EA |
|
6-700-AT-AC227 |
VTi® Celtic Radio AC/DC Transformer, Receiver & Wall Switch - White |
1 | EA |
|
0-040-AL-002XX |
MATRIX Aluminum Ellipse Track for Vertical Blinds |
FT | |
|
0-181-CA-00000 |
3" Alum. Valance for Sliding Panels & MX93/MATRIX |
FT | |
|
0-031-P1-00100 |
MATRIX 4 Prong Self Aligning Scissor Carriers with Replaceable Stem |
1 | BX |
|
0-031-CA-07000 |
MX93/MATRIX Rail Ceiling Mount Snap in Bracket for Valance, Zinc |
4 | EA |
|
0-031-P1-002X0 |
MATRIX Idle End Cap for Rounded Track - White |
1 | SET |
|
|
0-031-P1-00100 |
MATRIX 4 Prong Self Aligning Scissor Carriers with Replaceable Stem |
BX | |
|
0-031-P1-00000 |
MATRIX End Cap Set L/R for Valance - White |
SET |
| Picture | Code | Description | Quantity | Unit |
|---|---|---|---|---|
|
|
6-710-VB-003X0 |
Adapter Set for Vertical Blinds Motor - White |
1 | EA |
|
|
6-700-AT-AC227 |
VTi® Celtic Radio AC/DC Transformer, Receiver & Wall Switch - White |
1 | EA |
|
|
0-040-AL-002XX |
MATRIX Aluminum Ellipse Track for Vertical Blinds |
FT | |
|
|
0-031-P1-002X0 |
MATRIX Idle End Cap for Rounded Track - White |
1 | SET |
|
|
0-031-P1-00100 |
MATRIX 4 Prong Self Aligning Scissor Carriers with Replaceable Stem |
BX |
Codigo: 6-710-VB-00110
Empaque: 1 Set per Box
Unidad de Medida: Set
