Products

  1. Home
  2. Products
  3. VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core

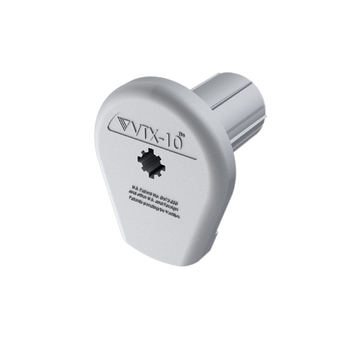

VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core

0-154-CL-V10XX 0-154-CL-V10BK
Black
0-154-CL-V10XX 0-154-CL-V10BR
Brown
0-154-CL-V10XX 0-154-CL-V10GR
Grey
0-154-CL-V10XX 0-154-CL-V10IV
Ivory
0-154-CL-V10XX 0-154-CL-V10WH
White
28mm (1 ⅛") Tube - 1 ½" (38mm) Projection Bracket

Imagen Code Descripcion Cantidad Unidad
0-154-CL-V10XX | VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core 0-154-CL-V10XX VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core
 1 EA
0-154-TU-280XX | 1 ⅛" (28 mm) Aluminum Tube 0-154-TU-280XX 1 ⅛" (28 mm) Aluminum Tube
 FT
0-000-07-XXXXX | PolyscreenVision 550 Crystal Vertical 0-000-07-XXXXX PolyscreenVision 550 Crystal Vertical
(Optional) 		YD
0-154-EX-00028 | TM End Plug 1⅛" (28mm) 0-154-EX-00028 TM End Plug 1⅛" (28mm)
 1 EA

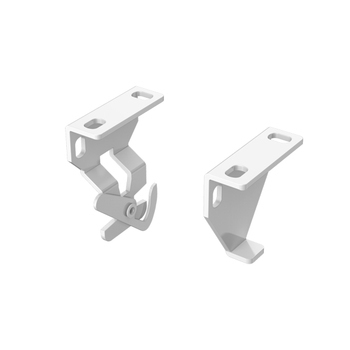

0-154-BX-36038 | Installation Brackets | Small TM | 1½" (38mm) Projection 0-154-BX-36038 Installation Brackets | Small TM | 1½" (38mm) Projection
 1 SET
0-154-CO-360X0 | Cover for Small TM Installation Braket with 1½" (38mm) Projection 0-154-CO-360X0 Cover for Small TM Installation Braket with 1½" (38mm) Projection
 1 SET
28mm (1 ⅛") Tube - 1 ½" (38mm) Projection Hybrid Bracket

Imagen Code Descripcion Cantidad Unidad
0-154-CL-V10XX | VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core 0-154-CL-V10XX VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core
 1 EA
0-154-TU-280XX | 1 ⅛" (28 mm) Aluminum Tube 0-154-TU-280XX 1 ⅛" (28 mm) Aluminum Tube
 FT
0-000-07-XXXXX | PolyscreenVision 550 Crystal Vertical 0-000-07-XXXXX PolyscreenVision 550 Crystal Vertical
(Optional) 		YD
0-155-EX-SLE01 | HM End Plug 1⅛" (28mm) | Spring Loaded 0-155-EX-SLE01 HM End Plug 1⅛" (28mm) | Spring Loaded
 1 EA
0-154-BX-TM015 | Easy-Tab Bracket | Small TM | 1½" (38mm) Projection 0-154-BX-TM015 Easy-Tab Bracket | Small TM | 1½" (38mm) Projection
 1 EA
0-155-BX-SL015 | Installation Bracket | HM | 1½" (38mm) Projection 0-155-BX-SL015 Installation Bracket | HM | 1½" (38mm) Projection
 1 EA
0-155-CO-SL15X | Cover for HM Installation Braket with 1½" (38mm) Projection 0-155-CO-SL15X Cover for HM Installation Braket with 1½" (38mm) Projection
 2 EA
0-155-BX-SLI15 | Intermediate Bracket | HM | 1½" (38mm) Projection 0-155-BX-SLI15 Intermediate Bracket | HM | 1½" (38mm) Projection
(Optional) 		1 EA
32mm (1 ¼") Tube - 1 ½" (38mm) Projection Hybrid Bracket

Imagen Code Descripcion Cantidad Unidad
0-154-CL-V10XX | VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core 0-154-CL-V10XX VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core
 1 EA
0-154-TU-320XX | 1 ¼" (32 mm) Aluminum Tube 0-154-TU-320XX 1 ¼" (32 mm) Aluminum Tube
 FT
0-000-07-XXXXX | PolyscreenVision 550 Crystal Vertical 0-000-07-XXXXX PolyscreenVision 550 Crystal Vertical
(Optional) 		YD
0-154-AD-V32XX | 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15 0-154-AD-V32XX 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15
 1 EA

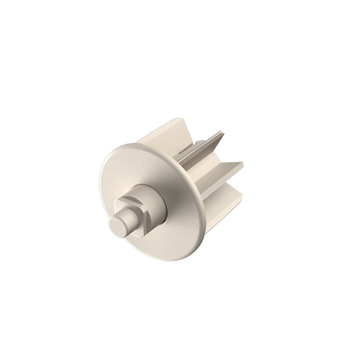

0-155-EX-SLE03 | HM End Plug 1¼" (32mm) | Spring Loaded 0-155-EX-SLE03 HM End Plug 1¼" (32mm) | Spring Loaded
 1 EA
0-154-BX-TM015 | Easy-Tab Bracket | Small TM | 1½" (38mm) Projection 0-154-BX-TM015 Easy-Tab Bracket | Small TM | 1½" (38mm) Projection
 1 EA
0-155-BX-SL015 | Installation Bracket | HM | 1½" (38mm) Projection 0-155-BX-SL015 Installation Bracket | HM | 1½" (38mm) Projection
 1 EA
0-155-CO-SL15X | Cover for HM Installation Braket with 1½" (38mm) Projection 0-155-CO-SL15X Cover for HM Installation Braket with 1½" (38mm) Projection
 2 EA
0-155-BX-SLI15 | Intermediate Bracket | HM | 1½" (38mm) Projection 0-155-BX-SLI15 Intermediate Bracket | HM | 1½" (38mm) Projection
(Optional) 		1 EA
32mm (1 ¼") Tube - 2" (50mm) Projection Bracket

Imagen Code Descripcion Cantidad Unidad
0-154-CL-V10XX | VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core 0-154-CL-V10XX VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core
 1 EA
0-154-TU-320XX | 1 ¼" (32 mm) Aluminum Tube 0-154-TU-320XX 1 ¼" (32 mm) Aluminum Tube
 FT
0-000-07-XXXXX | PolyscreenVision 550 Crystal Vertical 0-000-07-XXXXX PolyscreenVision 550 Crystal Vertical
(Optional) 		YD
0-154-AD-V32XX | 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15 0-154-AD-V32XX 1 ¼” (32mm) Tube Adapter for VTX10 & VTX15
 1 EA
0-154-EX-00032 | TM End Plug 1¼" (32mm) 0-154-EX-00032 TM End Plug 1¼" (32mm)
 1 EA
0-154-BX-38050 | Installation Brackets | Small TM | 2" (50mm) Projection 0-154-BX-38050 Installation Brackets | Small TM | 2" (50mm) Projection
 1 SET
0-154-CO-380W0 | Cover for Small TM Installation Bracket with 2"(50mm) Projection 0-154-CO-380W0 Cover for Small TM Installation Bracket with 2"(50mm) Projection
 1 SET
38mm (1 ½") Tube - 1 ½" (38mm) Projection Hybrid Bracket

Imagen Code Descripcion Cantidad Unidad
0-154-CL-V10XX | VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core 0-154-CL-V10XX VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core
 1 EA
0-154-TU-380XX | 1 ½" (38 mm) Aluminum Tube 0-154-TU-380XX 1 ½" (38 mm) Aluminum Tube
 FT
0-000-07-XXXXX | PolyscreenVision 550 Crystal Vertical 0-000-07-XXXXX PolyscreenVision 550 Crystal Vertical
(Optional) 		YD
0-154-AD-V38XX | 1 ½” (38mm) Tube Adapter for VTX10 & VTX15 0-154-AD-V38XX 1 ½” (38mm) Tube Adapter for VTX10 & VTX15
 1 EA
0-155-EX-SLE53 | HM End Plug 1½" (38mm) | Spring Loaded 0-155-EX-SLE53 HM End Plug 1½" (38mm) | Spring Loaded
 1 EA
0-154-BX-TM015 | Easy-Tab Bracket | Small TM | 1½" (38mm) Projection 0-154-BX-TM015 Easy-Tab Bracket | Small TM | 1½" (38mm) Projection
 1 EA
0-155-BX-SL015 | Installation Bracket | HM | 1½" (38mm) Projection 0-155-BX-SL015 Installation Bracket | HM | 1½" (38mm) Projection
 1 EA
0-155-CO-SL15X | Cover for HM Installation Braket with 1½" (38mm) Projection 0-155-CO-SL15X Cover for HM Installation Braket with 1½" (38mm) Projection
 2 EA
0-155-BX-SLI15 | Intermediate Bracket | HM | 1½" (38mm) Projection 0-155-BX-SLI15 Intermediate Bracket | HM | 1½" (38mm) Projection
(Optional) 		1 EA
38mm (1 ½") Tube - 2" (50mm) Projection Bracket

Imagen Code Descripcion Cantidad Unidad
0-154-CL-V10XX | VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core 0-154-CL-V10XX VTX10 Elegant Tab Mount 1 ⅛" (28mm) Core
 1 EA
0-154-TU-380XX | 1 ½" (38 mm) Aluminum Tube 0-154-TU-380XX 1 ½" (38 mm) Aluminum Tube
 FT
0-000-07-XXXXX | PolyscreenVision 550 Crystal Vertical 0-000-07-XXXXX PolyscreenVision 550 Crystal Vertical
(Optional) 		YD
0-154-AD-V38XX | 1 ½” (38mm) Tube Adapter for VTX10 & VTX15 0-154-AD-V38XX 1 ½” (38mm) Tube Adapter for VTX10 & VTX15
 1 EA
0-154-EX-00038 | TM End Plug 1½" (38mm) 0-154-EX-00038 TM End Plug 1½" (38mm)
 1 EA
0-154-BX-38050 | Installation Brackets | Small TM | 2" (50mm) Projection 0-154-BX-38050 Installation Brackets | Small TM | 2" (50mm) Projection
 1 SET
0-154-CO-380W0 | Cover for Small TM Installation Bracket with 2"(50mm) Projection 0-154-CO-380W0 Cover for Small TM Installation Bracket with 2"(50mm) Projection
 1 SET

General Information

Item Code: 0-154-CL-V10XX

Packing Unit: 100 Pcs per Box

Unit of Measurement: EA

Patent Logo

Patent # D675,050

Share it

Applications(s):
Roller Shades Neolux Dual Shades
